Elevation
Elevation is the perceived distance between an object and the surface behind it using shadows and light. Elevate UI elements to create visual cues, aid scannability, and convey levels of importance.

Depth, shadow, and light
Fluent interfaces mimic three dimensional space by placing components at different elevations along the z-axis to increase the visual prominence of certain UI elements. This creates a clear hierarchy and sense of focus within an experience.
Elevation uses the interplay of shadow and light to imply the distance between two surfaces and illustrate how far an object appears from the surface behind it.


Shadow direction
Consistent shadow direction conveys a perceived light source.

Shadow size
Just like in the physical world, sharp and crisp shadows indicate closeness to a surface, while larger, softer shadows indicate a greater distance.
Shadow system

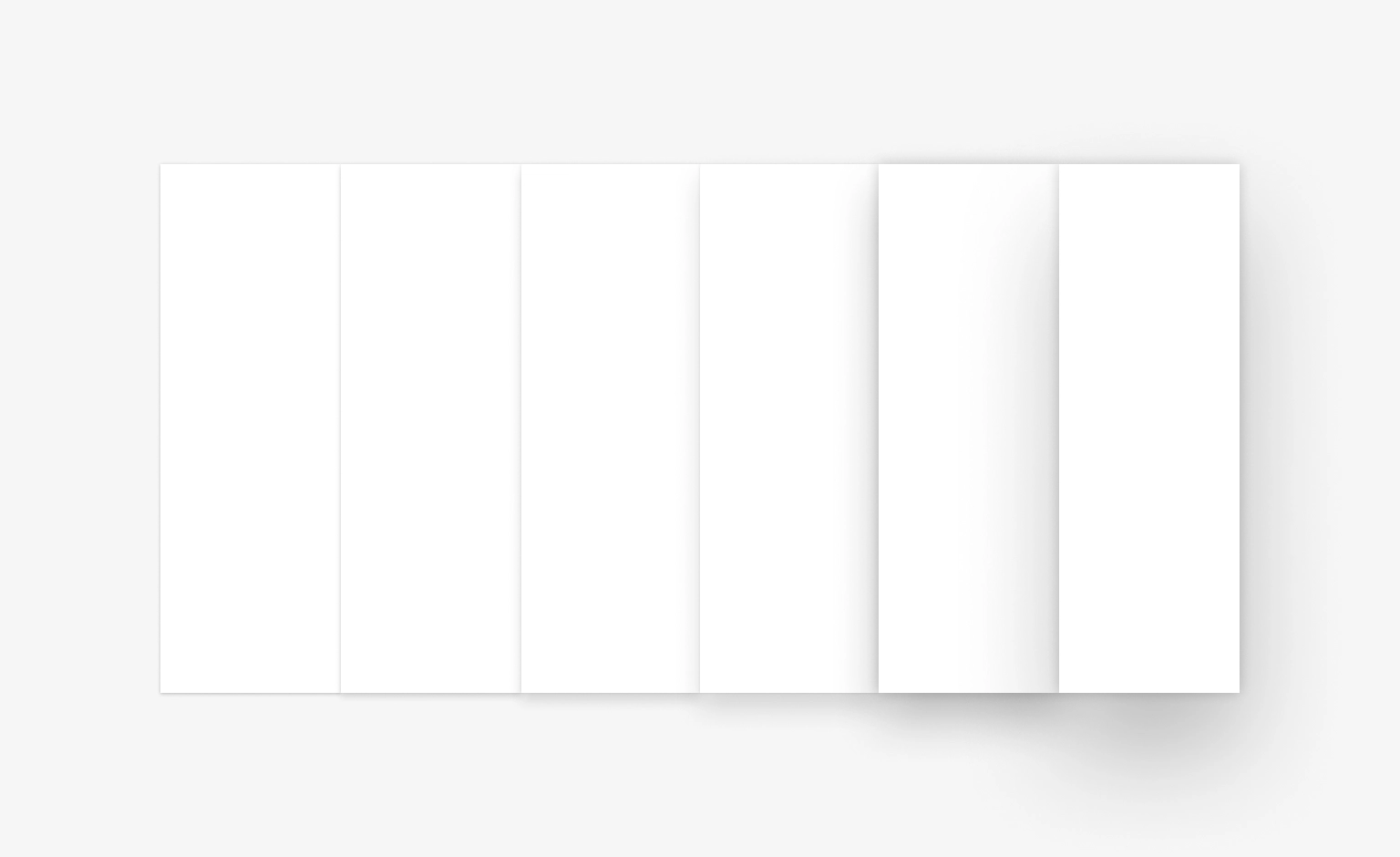

Fluent uses a set of equations to generate consistent, cohesive shadows based on any given value. The shadow ramp references increasing blur values to indicate shadow size and, thereby, distance. For example, shadow 2 has 2 pixel blur and shadow 64 has 64 pixel blur. The six shadow types, token values, and use cases are listed in the following elevation tables.

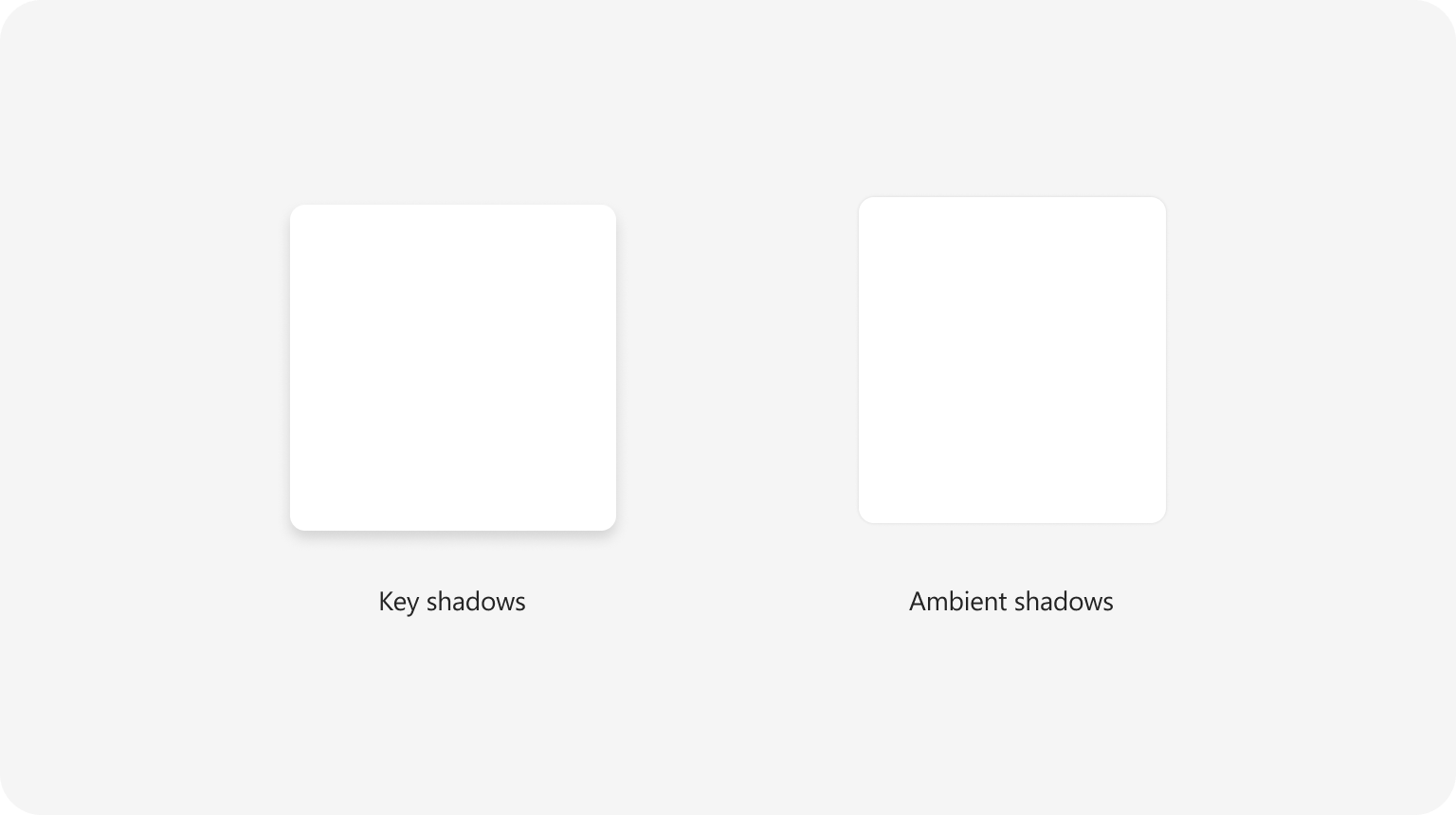

Fluent shadows are created by combining sharp, directional shadows (key) to define the edges of an element and soft, diffused shadows (ambient) to imply distance.

Platform distinction

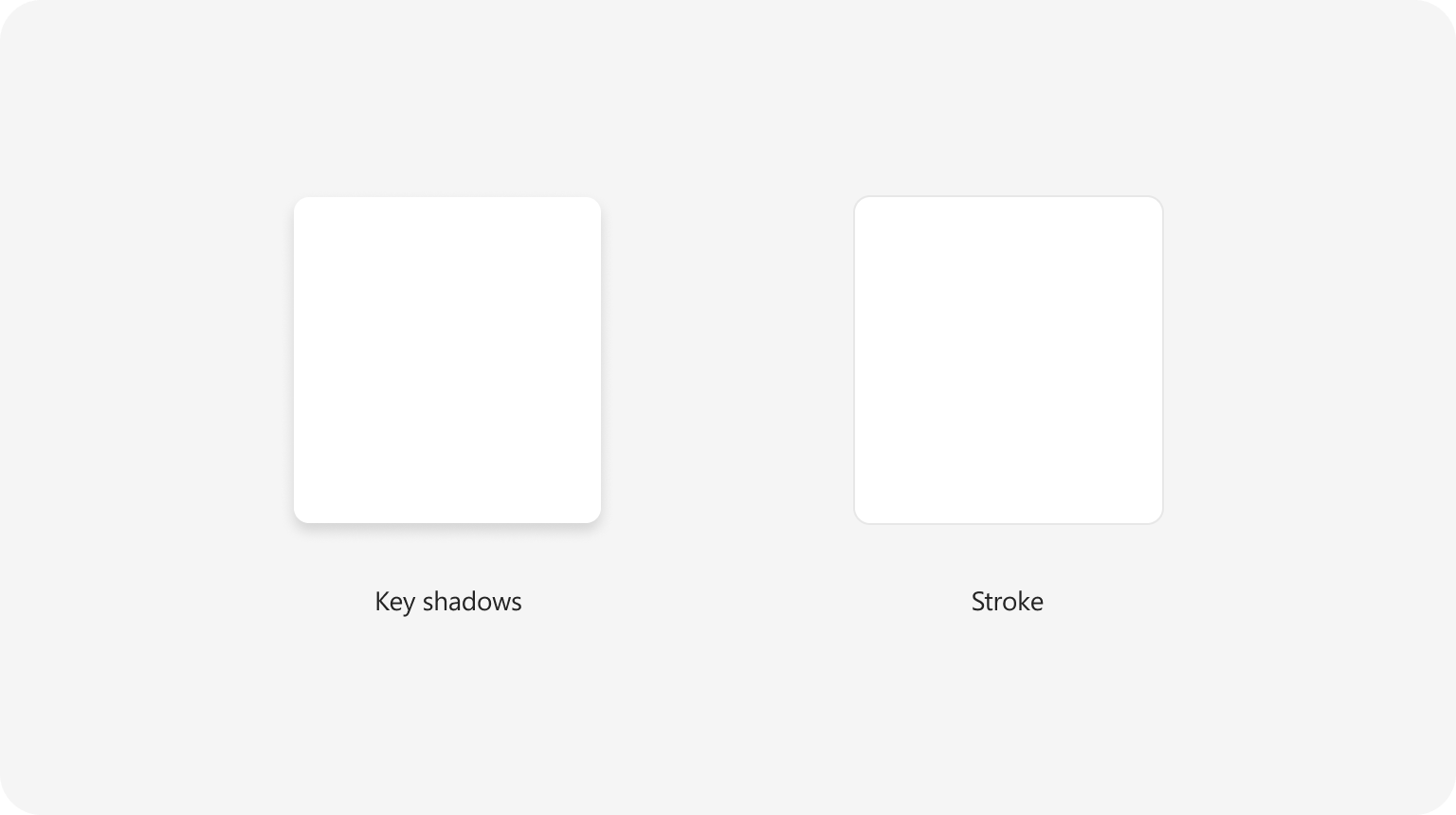

Windows uses strokes instead of key shadows to outline an object.

Low elevation ramp


Light Shadow 2
Cards without an edge and floating action buttons when pressed
$shadow2

Dark Shadow 2
Ribbon, icons, and hero buttons
$shadow2

Light Shadow 4
Cards without an edge
$shadow4

Dark Shadow 4
Cards, grid items, and list items
$shadow4

Light Shadow 8
Floating action buttons, raised cards, and raised app bars
$shadow8

Dark Shadow 8
Command bars, command dropdowns, and tooltips
$shadow8

Light Shadow 16
Cards without edge and floating action buttons when pressed
$shadow16

Dark Shadow 16
Callouts and hover cards
$shadow16
High elevation ramp


Light Shadow 28
Bottom sheet, side navigation, and raised tab bars
$shadow28

Dark Shadow 28
Bottom sheet, side navigation, and raised tab bars
$shadow28

Light Shadow 64
Pop-up dialogs
$shadow64

Dark Shadow 64
Panels and pop-up dialogs
$shadow64
Shadows on color surfaces
To convey the same level of elevation on color surfaces, we adjust the shadows using the luminosity equation. Use the provided brand shadow tokens to apply shadows to colors in an interface.
Luminosity equation
When compared to neutrals, the same shadow value on brand colors may not give the impression of the same elevation levels. To bring elements to the same level of elevation visually, we use the luminosity equation to calculate the shadow opacity based on the color’s luminosity.
Use the brand shadow tokens to ensure consistent shadows throughout interfaces.

Luminosity
0.2126 * R + 0.7152 * G + 0.0722 * B
Shadow 1 opacity
Round ( 42 - 0.116 * luminosity )
Shadow 2 opacity
Round ( 34 - 0.09 * luminosity )

Adjust shadow opacity based on the luminosity of the surface color

Don’t use the main shadow ramp on colored surfaces
